Medical Device Injection Molding: A Complete Guide

Injection molding is one of the most widely used manufacturing processes for producing plastic components used in medical devices. It can provide repeatable dimensions, complex geometries, consistent part quality, and efficient production for applications ranging from medical housings and instrument components to laboratory equipment and disposable devices.

For medical device manufacturers, however, choosing an injection molding partner involves more than comparing unit prices. Material selection, mold design, dimensional accuracy, process control, quality inspection, traceability, and regulatory requirements all need to be considered.

In this guide, we explain how injection molding is used for medical devices, common materials and applications, important design considerations, and how to select a suitable medical injection molding partner.

What Is Medical Device Injection Molding?

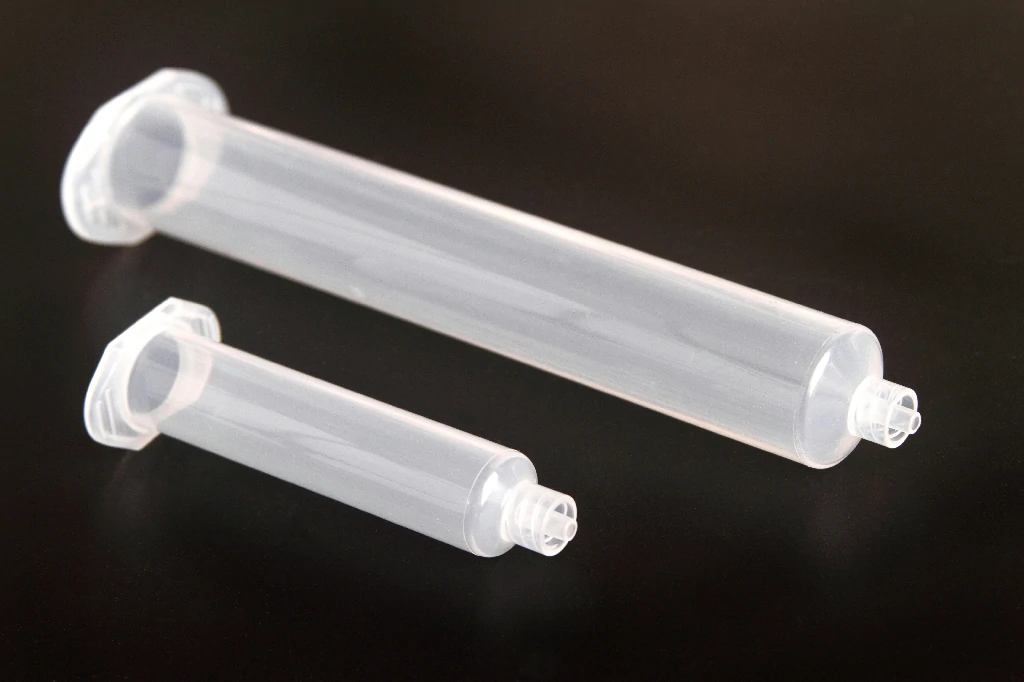

Medical device injection molding is a manufacturing process used to produce plastic components for medical and healthcare applications.

During the process, plastic material is heated until it reaches a molten state and then injected into a precision mold under controlled pressure. After cooling and solidification, the molded component is ejected from the mold.

Injection molding can produce both relatively simple and highly complex plastic components with consistent dimensions and repeatability.

Common medical injection molded components include:

• Medical device housings
• Instrument components
• Laboratory equipment components
• Disposable medical components
• Diagnostic equipment parts
• Surgical instrument components
• Connectors and fittings
• Protective covers and enclosures

The appropriate manufacturing process depends on the product's design, material, production volume, dimensional requirements, and intended application.

Why Is Injection Molding Used for Medical Devices?

Medical device manufacturers often require parts that are consistent, precise, and suitable for repeated production. Injection molding can meet many of these requirements when the mold, material, equipment, and manufacturing process are properly controlled.

High Repeatability

Once the injection mold and process parameters have been validated, injection molding can produce large quantities of parts with consistent dimensions and geometry.

This repeatability is particularly important when components must fit together during assembly.

Complex Geometries

Injection molding can produce features that may be difficult or expensive to manufacture using subtractive processes.

These may include:

• Ribs
• Bosses
• Clips
• Snap-fits
• Thin walls
• Complex contours
• Integrated mounting features

High Production Efficiency

Injection molding can become highly efficient at medium and high production volumes because the same mold can be used to manufacture a large number of parts.

Although tooling requires an initial investment, the cost per part can decrease as production volume increases.

Consistent Appearance

Medical device components may require a controlled and consistent appearance, particularly for external housings and user-facing components.

Injection molding can provide repeatable surface textures, finishes, and colors when the mold and process are properly controlled.

Common Materials for Medical Injection Molding

Material selection is one of the most important decisions in medical injection molding.

The appropriate material depends on the intended application, required mechanical properties, temperature resistance, chemical exposure, sterilization method, and applicable regulatory requirements.

Common engineering plastics may include:

ABS

ABS offers good impact resistance, dimensional stability, and machinability. It may be suitable for certain medical equipment housings and non-implantable components where its properties meet the application's requirements.

Polycarbonate (PC)

Polycarbonate is known for its impact resistance and transparency. It can be considered for applications requiring durability and visual inspection.

Polypropylene (PP)

Polypropylene provides good chemical resistance and low moisture absorption. It is commonly used in various laboratory and medical-related plastic applications.

PEEK

PEEK is a high-performance engineering thermoplastic with excellent mechanical, chemical, and temperature resistance. It is used for demanding applications where standard plastics may not provide sufficient performance.

Nylon

Nylon materials can provide good strength and wear resistance. Different grades can be selected depending on the required mechanical and environmental performance.

Material selection should always be based on the actual application and applicable medical-device requirements rather than simply choosing the strongest or most expensive material.

Medical Injection Molding Design Considerations

Good part design is essential for achieving reliable injection molding results.

Wall Thickness

Consistent wall thickness can help reduce common molding problems such as:

• Warping
• Sink marks
• Uneven cooling
• Internal stress

Where possible, designers should avoid unnecessary changes in wall thickness.

Draft Angles

Draft angles allow molded parts to be removed from the mold more easily.

Insufficient draft can increase the risk of:

• Scratches
• Part deformation
• Ejection problems
• Mold damage

The appropriate draft angle depends on the material, surface texture, part geometry, and mold design.

Ribs and Bosses

Ribs can improve structural strength without significantly increasing wall thickness.

However, ribs and bosses should be designed carefully to reduce the risk of sink marks and other molding defects.

Tight Tolerances

Medical components may require precise dimensions, but not every feature needs extremely tight tolerances.

Unnecessarily tight tolerances can increase tooling and manufacturing costs.

A good manufacturing partner can help determine which dimensions require tighter control based on the function of the component.

Injection Mold Design for Medical Components

The mold plays a critical role in the quality and consistency of injection molded medical components.

Important considerations include:

• Mold material
• Mold cavity design
• Gate location
• Cooling system
• Ejection system
• Parting line
• Venting
• Surface texture

Proper mold design can improve cycle time, dimensional stability, part quality, and long-term mold performance.

For production projects, manufacturers should evaluate the expected production volume and required mold life before selecting the appropriate tooling strategy.

Quality Control for Medical Injection Molded Parts

Quality control is particularly important for medical device manufacturing.

Depending on the product and applicable requirements, quality processes may include:

• Dimensional inspection
• Visual inspection
• Material verification
• Functional testing
• Mold inspection
• Process monitoring
• Lot or batch traceability

Manufacturers should establish inspection criteria based on the customer's drawings, specifications, quality requirements, and applicable regulatory standards.

For critical dimensions, precision measurement equipment such as coordinate measuring machines (CMMs) may be used when appropriate.

Regulatory and Compliance Considerations

Medical device manufacturing can involve strict regulatory and quality requirements.

The exact requirements depend on factors such as:

• Device classification
• Intended use
• Market
• Material
• Manufacturing process
• Sterilization method
• Applicable regulations

For example, medical device manufacturers supplying the United States may need to consider FDA requirements, while companies serving European markets may need to consider applicable EU medical device requirements.

It is important to distinguish between manufacturing a component and certifying a finished medical device. The medical device manufacturer remains responsible for ensuring that the finished product meets the applicable regulatory requirements.

When selecting a manufacturing supplier, customers should clearly communicate their quality standards, documentation requirements, material specifications, and regulatory expectations.

Injection Molding for Medical Device Prototypes

Injection molding is not always the first manufacturing process used during product development.

For early-stage medical device development, companies may begin with:

3D Printing → CNC Machining → Prototype Testing → Injection Molding → Production

3D printing can be useful for early design verification, while CNC machining can produce functional prototypes from production-grade materials.

Vacuum casting can also be useful when several plastic-like prototypes are needed before committing to production tooling.

Once the design has been sufficiently validated, injection molding can provide a more production-oriented solution for larger quantities.

Low-Volume Injection Molding for Medical Products

Not every medical product requires extremely large production volumes.

Low-volume injection molding can be considered for:

• Product validation
• Pilot production
• Market testing
• Specialized equipment
• Replacement components
• Early-stage product launches

The appropriate manufacturing strategy depends on the expected production quantity, tooling budget, product lifecycle, and regulatory requirements.

For some projects, rapid tooling or alternative manufacturing processes may provide a more practical solution during the early stages of development.

Injection Molding vs CNC Machining for Medical Components

Both injection molding and CNC machining can be useful for medical device components, but they serve different purposes.

CNC machining can be particularly useful for prototypes and low-volume precision components, while injection molding becomes increasingly attractive as production quantities increase.

How to Choose a Medical Injection Molding Partner

Choosing the right supplier requires more than evaluating the quoted price.

Consider the following factors.

Manufacturing Experience

Look for a supplier with experience producing precision plastic components and working with demanding product specifications.

Engineering and DFM Support

A capable supplier should be able to review your design and identify potential molding issues before tooling begins.

Quality Management

Ask about quality control procedures, inspection equipment, documentation, and relevant certifications.

Material Capabilities

Make sure the supplier can source and process the material required for your application and provide the necessary material documentation when applicable.

Tooling Capabilities

Evaluate mold design, tooling quality, expected mold life, maintenance, and production capacity.

Communication

Clear communication is essential when working with technical drawings, material specifications, tolerances, inspection requirements, and design changes.

HLH Prototypes for Medical Device Prototyping and Manufacturing

Medical device development often requires different manufacturing technologies at different stages, from early prototypes and functional testing to low-volume and production manufacturing.

HLH Prototypes provides multiple manufacturing processes under one roof, including injection molding, CNC machining, 3D printing, vacuum casting, die casting, sheet metal fabrication, and carbon fiber manufacturing. This multi-process capability allows our engineering team to recommend suitable manufacturing solutions based on material, geometry, production volume, tolerances, and functional requirements.

We are equipped with a quality management system and industry certifications, including ISO 13485 for medical devices, ISO 9001 for quality management, and IATF 16949 for automotive quality management. These certifications, combined with our manufacturing capabilities and quality control processes, provide a qualified foundation for supporting medical device prototyping and manufacturing projects.

For example, an early-stage medical device housing can be developed using 3D printing for design verification, followed by CNC machining or vacuum casting for functional and appearance testing. Once the design has been validated, injection molding can be used for repeatable production of plastic components.

Our experienced engineering team also provides DFM feedback and manufacturing guidance to help identify potential production issues before manufacturing begins.

For medical device projects, customers can provide their drawings, material specifications, tolerances, quality standards, production volumes, and applicable regulatory requirements. Our team can then evaluate the project and recommend an appropriate manufacturing process and quality control approach.

Summary

Injection molding is an efficient manufacturing method for producing consistent plastic components for many medical device applications. Its ability to produce complex geometries with high repeatability makes it particularly valuable for medium- and high-volume production.

However, successful medical injection molding requires careful consideration of material selection, mold design, part design, dimensional tolerances, quality control, documentation, and applicable regulatory requirements.

For companies developing medical devices, choosing a manufacturing partner with multiple production capabilities can provide greater flexibility throughout the product development process.

From early prototypes and design validation to injection molding and production, an experienced manufacturing partner can help streamline the transition from concept to finished components.

If you are developing a medical device component and need help selecting the appropriate manufacturing process, provide your CAD files, drawings, material requirements, and production quantity for an engineering and manufacturing review.
